1064nm
laser>>HPL-1064-CW |
|
|

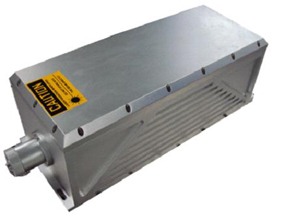

HPL-1064-CW/50~100W - up to 100W, 1064 nm DPSS laser with TEM00 mode, high power stability |
|
|
|
 |
|
Specification |
| |
|
Model |
HPL-1064-CW(50-100W) |
|
Wavelength (nm) |
1064±1 |
|
Operating mode |
CW |
|
Power (W) |
50 |
100 |
|
Ave power stability (over 4 hours) |
<3%,<5% |
|
Beam divergence, full angle (mrad) |
<3.5 |
|
Beam diameter at the aperture (mm) |
≥6 |
≥9 |
|
Beam height from base plate (mm) |
55.0 |
|
Warm-up time (minutes) |
<10 |
|
Cooled method |
Water Cooled |
|
Operating temperature (℃) |
15~35 |
|
Power supply (220/110VAC) |
PSU-HPL-CW(2U) |
|
Expected lifetime (hours) |
10000 |
|
Warranty period |
1 year |
|
Datasheet |
 |
|
|
|
|
Features |
Applications |
Drawings |
-
Output
Power up to 100 W
-
Lightweight, compact design
-
Superior
beam quality
-
Best
reliability and lifetime
|
-
Collimation
-
Laser
medical treatment
-
Scientific
experiment
-
Optical
instrument
-
Confocal
Microscopy
-
Optical
sensor
-
Communication
|
|
|
Options |
|
|
|
|
|
|
