589nm
laser>>HPL-589-Q |
|
|

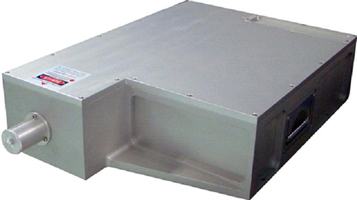

HPL-589-Q/3-10mJ/10~50W - up to 50W, 589 nm water
cooled actively Q-switched pulse laser |
|
|
|
 |
|
Specification |
|
|
|
Model |
HPL-589-Q |
|
Wavelength (nm) |
589±1 |
|
Operating mode |
Q-switched: AOM (Acousto-Optic Modulation) |
|
Single pulse energy (mJ) |
3.0~10.0 |
|
Pulse duration (ns) |
~150 |
|
Peak power (kW) |
20~66 |
|
Rep. rate (kHz) |
1~20, adjustable |
|
Average power (W) |
Average power (W) = Single pulse energy (mJ) * Rep. rate (kHz) |
|
0~50@5kHz, typical |
|
Ave power stability (over 4 hours) |
<3%, <5% |
|
Warm-up time (minutes) |
<15 |
|
Beam divergence, full angle (mrad) |
<3.0 |
|
Beam diameter at the aperture (mm) |
~15.0 |
|
Beam height from base plate (mm) |
40.0 |
|
Cooled method |
Water Cooled |
|
Operating temperature (℃) |
15~35 |
|
Power supply (220/110VAC) |
PSU-HPL-Q(8U) |
|
Expected lifetime (hours) |
10000 |
|
Warranty period |
1 year |
|
Datasheet |
 |
|
|
|
|
Features |
Applications |
Drawings |
-
Output
Power up to 50W
-
TEC cooling
system
-
High
single pulse energy
-
High
repetition rate
-
Water
cooled
-
Best
reliability and lifetime
|
-
Carving
-
Laser
marking
-
Measure
-
Scientific
research and experiment
-
Optical
instrument
|
|
|
