1064nm
laser>>DPS-1064-Q |
|
|

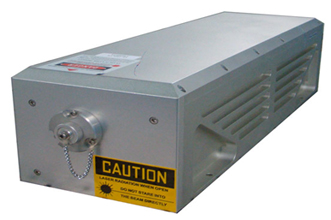

DPS-1064-Q/5~40mJ,
1064 nm
high single pulse energy all solid state Q-switched
laser |
| |
|
 |
|
Specification |
|
|
|
Model |
DPS-1064-Q |
|
Wavelength (nm) |
1064±1 |
|
Operating mode |
Q-switched: EOM (Electro-optic modulation) |
|
Single pulse energy (mJ) |
5 |
10 |
20 |
30 |
40 |
|
Pulse duration (ns) |
<12 |
<12 |
<12 |
<10 |
<10 |
|
Rep. rate (Hz) |
1000 |
1~100 (adjustable) |
|
Energy stability |
<2% |
|
Beam divergence, full angle (mrad) |
<2 |
|
Beam diameter (mm) |
~1.5 |
~2 |
~2.5 |
~3 |
~4 |
|
Warm-up time (minutes) |
<15 |
|
Beam height from base plate (mm) |
55 |
|
Cooled method |
Water Cooled |
|
Operating temperature (℃) |
15~35 |
|
Power supply (220/110VAC) |
PSU-DPS-Q-II(3U) |
|
Expected lifetime (pluses) |
109 |
|
Warranty period |
1 year |
|
Available options |
Other repetition rates:100~1000Hz;
Jitter:~1ns(Sdev); Accessories |
|
Datasheet |
 |
|
|
|
|
Features |
Applications |
Drawings |
-
Single
pulse energy up to 40mJ
-
Lightweight, compact design
-
High peak
power
-
High
repetition rate
-
Short pulse
duration
-
Best
reliability and lifetime
|
-
Carving
-
Laser
marking
-
Measure
-
Scientific
research and experiment
-
Optical
instrument
|
|
|
Options |
|
|
|
|
|
|
