1064nm
laser>>PS-R-1064 |
|
|

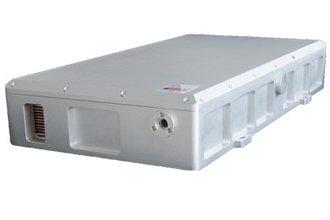

PS-R-1064/1-8W-
up to 8W, 10-20ps ,1064nm Passively
Mode-locked Picosecond pulsed laser |
|
|
|
 |
|
Specification |
|
|
|
Model |
PS-R-1064 |
|
Wavelength (nm) |
1064±1nm |
|
Operating mode |
Mode-locked |
|
Output power |
@Mode-locked mode |
1~8W |
|
Transverse mode |
TEM00 |
|
Pulse duration (ps) |
10~20 |
|
Rep. rate (MHz) |
48 |
|
Ave power stability (over 4 hours) |
<3%,<5% |
|
Warm-up time (minutes) |
<10 |
|
Beam divergence, full angle (mrad) |
<3.0 |
|
Beam diameter at the aperture (mm) |
~1.5 |
|
Beam height from base plate (mm) |
57 |
|
Cooled method
|
Air cooled |
|
Operating temperature (℃) |
10~30 |
|
Power supply (90-264VAC) |
PSU-Z-LED |
|
Datasheet |
 |
|
|
|
|
Features |
Applications |
Drawings |
|
|
-
Laser distance measuring
-
Scientific experiment
-
Optical instrument
-
Marking
-
Research
-
Industry
|
|
|
