660nm laser>>HPL-660-QM

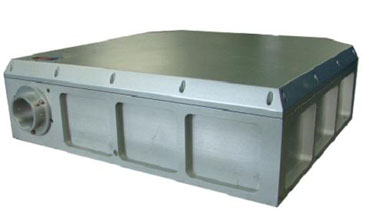

HPL-660-QM(100W) - up to 100 W, 660 nm water cooled actively Q-switched pulse laser


Specification


Model HPL-660-QM(100W)

Wavelength (nm)

660±1

Operating mode

Q-switched: AOM (Acousto-Optic Modulation)

Average power (W)

>100
Pulse duration (ns) ~150 @10kHz
Rep. rate (kHz) 10~20 (It is possible to customize other repetition rates )
Single pulse energy (mJ) >10 @10kHz
Peak power (kW) >65 @10kHz
Ave power stability (over 4 hours) <3% or 5%
Beam divergence, full angle (mrad) <3.5
Beam diameter at the aperture (mm) ≥15
Beam height from base plate (mm) 55
Warm-up time (minutes) <10
Cooled method  Water Cooled
Operating temperature (℃) 15~35
Power supply (220/110VAC) PSU-HPL(2U×4)
Expected lifetime (hours) 10000
Warranty period 1 year
Datasheet

Features Applications Drawings
  • Output Power up to 100W
  • High peak power
  • High repetition rate
  • Short pulse duration
  • Water cooled
  • Best reliability and lifetime
  • Carving
  • Laser marking
  • Measure
  • Scientific research and experiment
  • Optical instrument



Options
