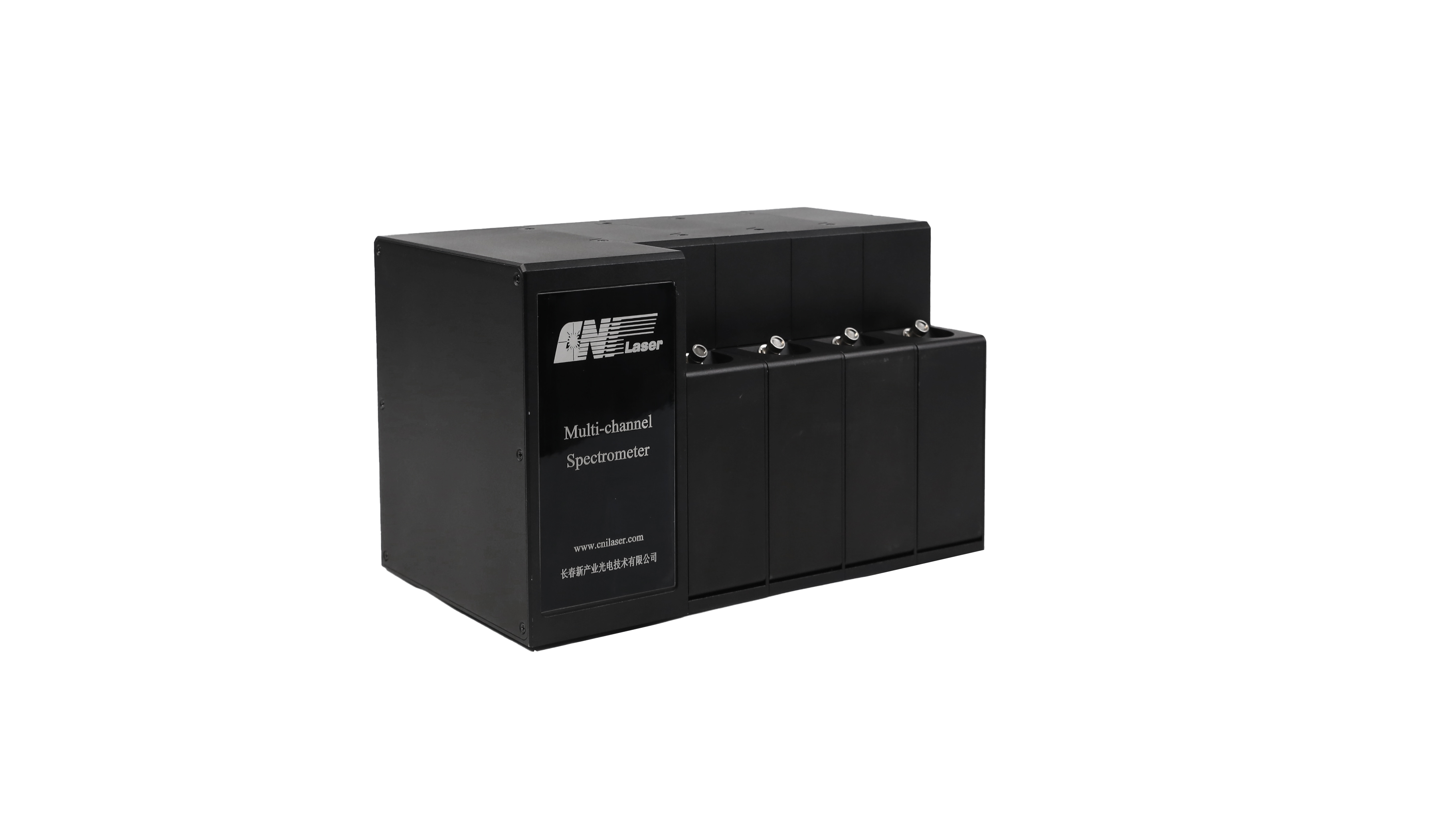

Multi-channel Spectrometer


CNI developed Rainbow series Multi-channel spectrometer with the features of wide spectral range and high resolution. With synchronous delay device to ensure synchronous acquisition between channels, the highest resolution up to 0.1nm. It is suitable for high resolution detection in wide spectal range. CNI can also customize the different channels of the spectrometers according to different customers’ demands.


Features:
  • High resolution

  • Customized the quantity of channels and spectral range

  • Include synchronous delay device

  • Internal/ external control mode

  • Suitable for Spectral Analysis and LIBS software

Applications:

  • Plasma spectral analysis

  • Soil pollution analysis

  • Heavy metal analysis

  • Food safety analysis

  • Biological analysis




Multi-channel optional (Can be customized)
系列型号

2 channels (Spectral range 250-650 nm)

Wavelength range

250-450 nm 450-650 nm

Resolution (nm)

0.16

0.18

3 channels (Spectral range 250-645 nm)

Wavelength range

250-340 nm 340-420 nm 420-645 nm

Resolution (nm)

0.12 0.1 0.18
4 channels (Spectral range 250-1050 nm)

Wavelength range

250-450 nm 450-650 nm 650-850 nm 850-1050 nm

Resolution (nm)

0.16 0.18 0.2 0.2
5 channels (Spectral range 249-443 nm)

Wavelength range

249-284 nm 284-333 nm 333-364 nm 364-404 nm 404-443 nm

Resolution (nm)

0.05 0.05 0.08 0.08 0.08

Standard Specifications


Spectrometer

Wavelength range

200-1100nm (Wavelength range and resolution can be customized)

Optical resolution

<0.75nm FWHM

Pixels

3648 pixels

Pixel size

8um*200um

Signal-to-noise ratio 300:1
Integration time 4ms-10s
Power consumption 450mA@5VDC


Delay device

Synchronous channel

6 channels (Other channel quantity optional depending on the spectrometer)

Tigger mode Internal/ external control
Delay jitter <1ns
Delay control range 0-1ms
Signal outputs 5V TTL signal


Software

Spectral analysis

Spectral Analysis and LIBS software

Operating system

Windows XP/Win7 (32-bit and 64-bit)

Characteristic

  • Dimensions: 364.1*147.1*300 (3U 63 hole)
  • Computer interface: USB 2.0 and USB 1.0
  • Power supply: 220VAV, 50-60Hz
  • Fiber connector: SMA905/ FC (Multi-in-one fiber can be customized according to the channel quantity)
