M² Factor Measurement——M²-Meter


      Beam quality and it's focusing capability are very important parameters of laser, are usually characterized by M² factor. To measure the M² factor for a laser, it is testing the difference between the product of the beam diameter and divergence, and the ideal gaussian beam diffraction limit. Through derivation the computation formula is as below:

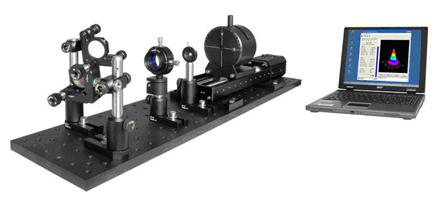

M²-Meter Testing Instrument: M²-Meter


M2-Meter
Detector material Si
Wavelength range 400-1100nm
Receiving beam diameter 20um-9mm
Testing output power range 10nW-10W(Depends on the beam diameter)

Example of the Testing Result
