Wavelength Measurement——Fiber Optic Spectrometer


      Wavelength is the spatial period of the wave - the distance between consecutive corresponding points of the same phase. Light wave refers to electromagnetic spectrum, which has wavelengths in the range of 0.1mm to 0.1 μm. The wavelength of the light wave is the light wavelength.
      CNI fiber optic spectrometers with the characteristics of compact and portable design, plug and play, easy operation and Spectral Analysis 5.0 software downloads, can replace the old spectrophotometers. They are widely used in laser wavelength and line width measurement and also the laser excitation fluorescence, Raman and LIBS spectrum measurement.


Testing Instrument: Fiber Optic Spectrometer


Fiber Optic Spectrometer
Model

Features

Resolution

Wavelength Range

Description

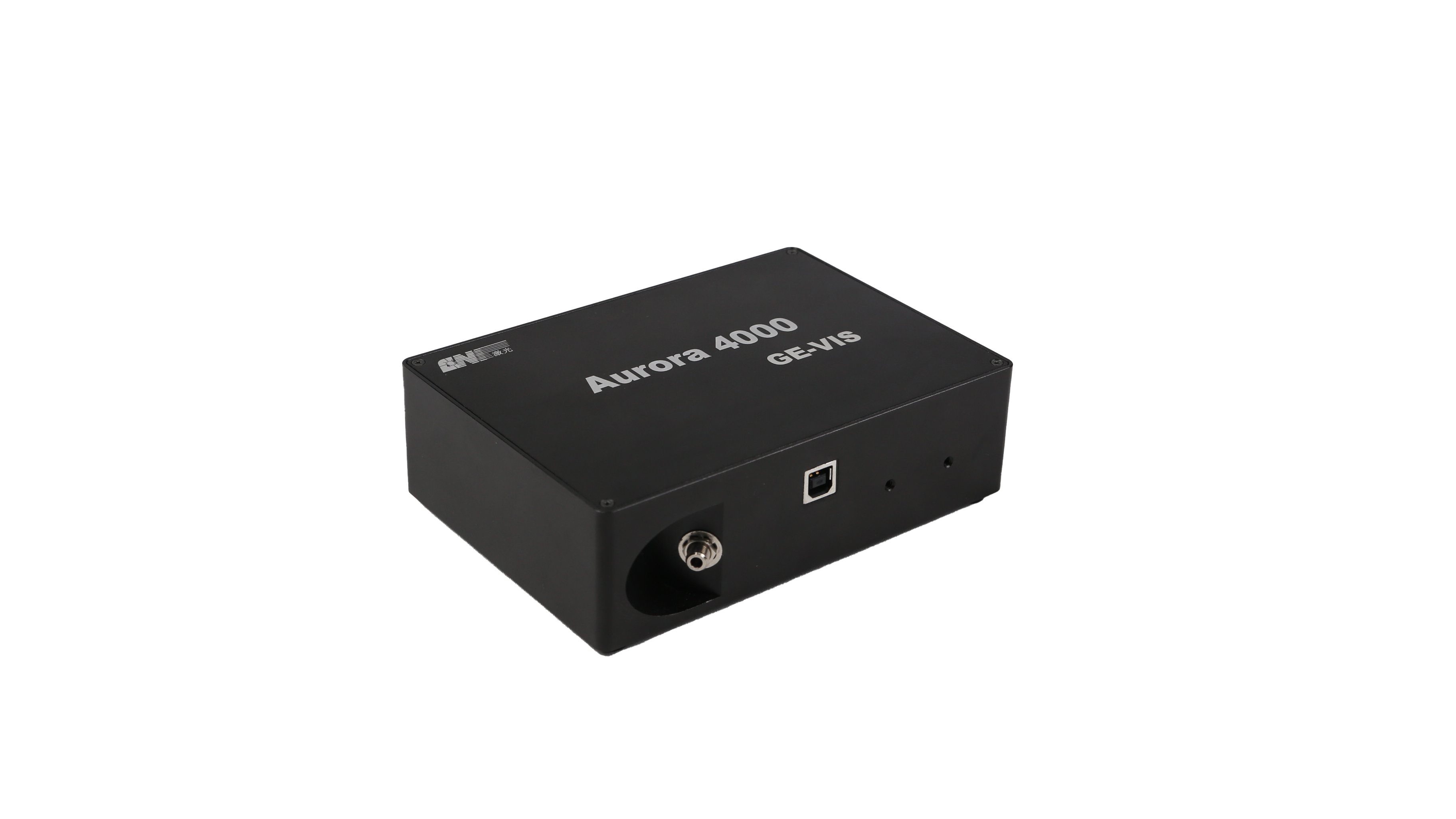

Aurora4000 series

High resolution: can be up to 0.1 nm(FWHM)

<0.75nm

200-1100nm
(custom design)

Able to measure wavelength, line width of laser, LED and other common light source, and also the laser excitation fluorescence, LIBS spectral characteristics.

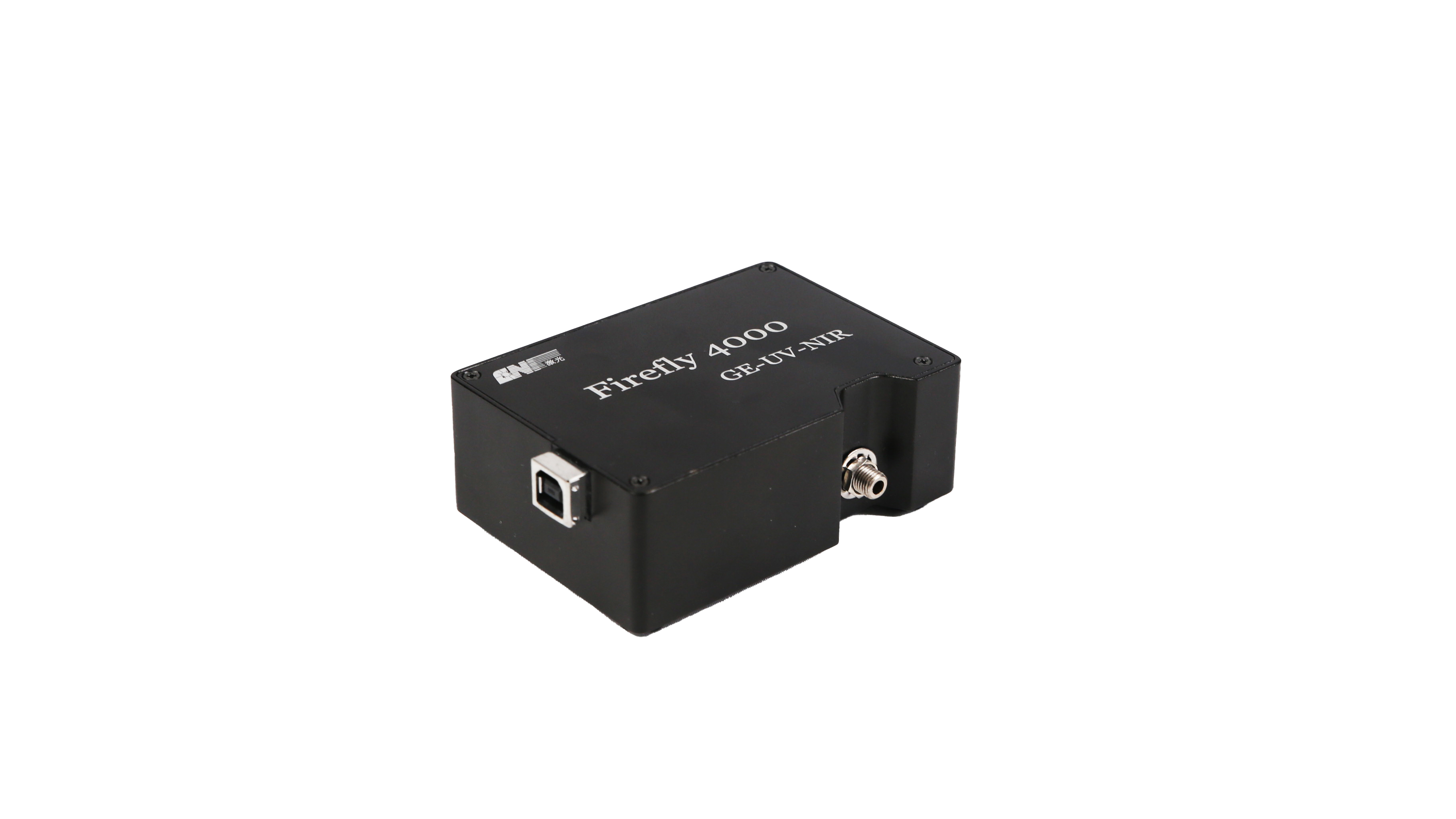

Firefly4000 series Compact: small and portable type

<0.6nm

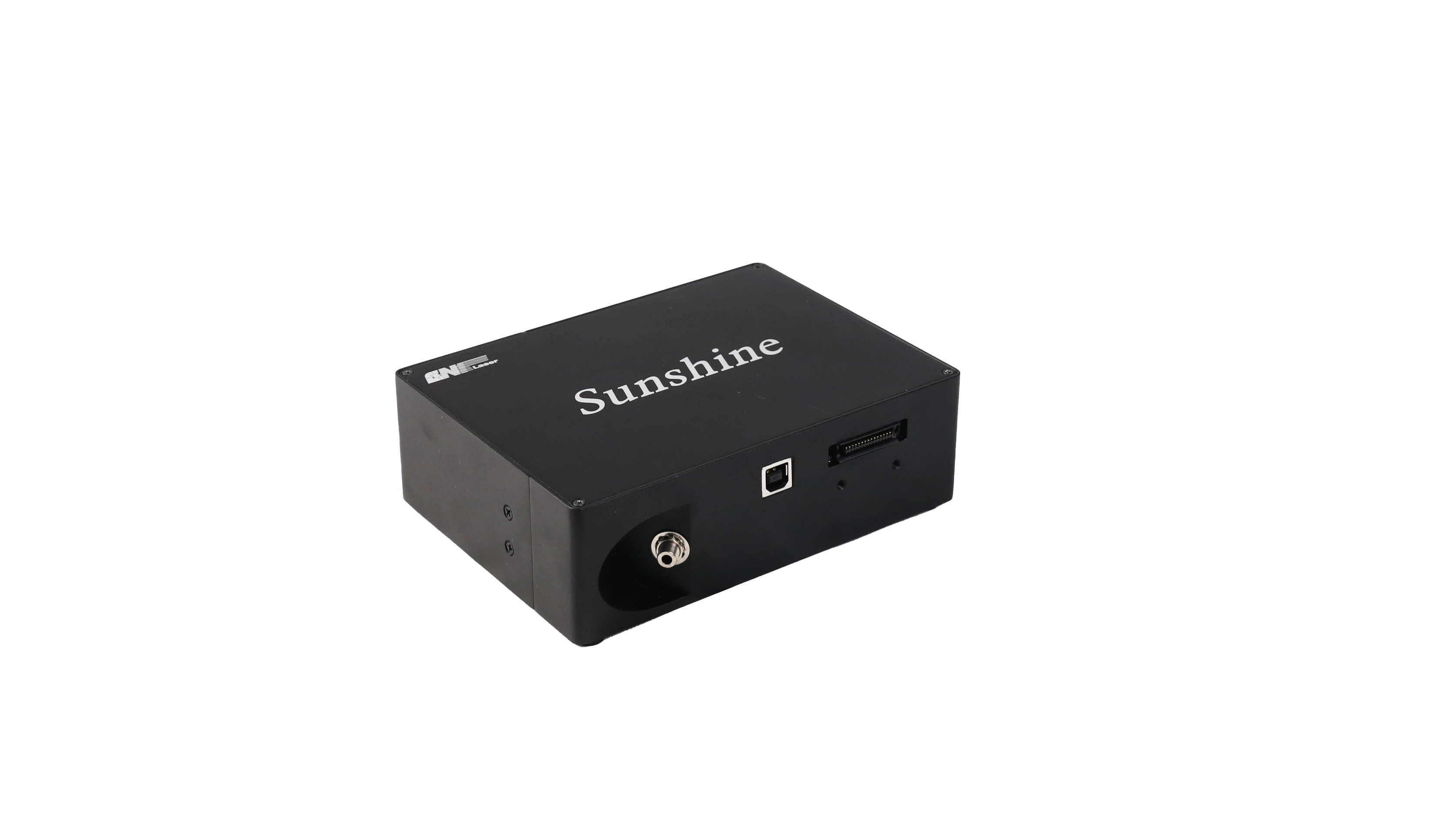

Sunshine series High sensitivity: can be up to 80% quantum efficiency

0.035-0.6nm

Able to measure laser excitation Raman spectral characteristics.


Examples of Laser Wavelength and Line Width Testing Results
Laser wavelength testing Diode laser line width testing
Laser wavelength testing Diode laser line width testing


Examples of Laser Excitation Spectrum Testing Results


Rare earth fluorescence spectrum Acetone Raman spectrum Copper-aluminum alloy LIBS spectrum
Rare earth fluorescence spectrum Acetone Raman spectrum Copper-aluminum alloy LIBS spectrum


   More information of spectrum testing, please visit: http://www.cnilaser.com//spectrum_analysis.htm
