PS100


High Precision Photoelectric Laser Power Meter




Features:
  • Wavelength range: 320-1100 nm
  • High precision: ±2%
  • Resolution: 2nW


Model

PS100

Detector Model

PD-MN-100

Power Range

2nW -100mW

Active Area Diameter

8mm

Receiving Element

Si Photo diode

Wavelength Range

320-1100 nm

Measurement Display

nW/ µW/ mW/ dBm/ dB

Calibration Uncertainty (k=2)

±2%

Response Time (0-90%)

0.2sec.

Total Weight

0.8kg

Instrument Power

100-240 VAC, 50/60 Hz, DC 9V-1.4A

Temperature (Operating)

5-45 (41-113)

Temperature (Storage)

-20-70 (-4-158)

Warranty 1 year
Datasheet

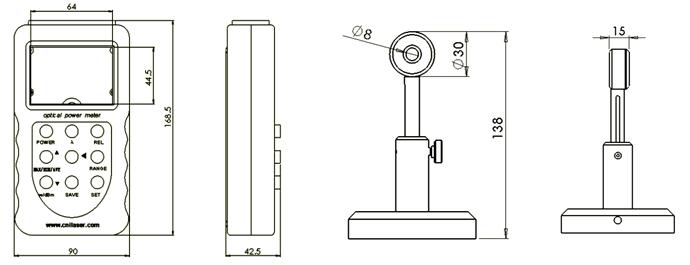

PS100 Meter and Probe

Header

Probe PD-MN-100
