TS35/ 50+TP100


Laser Power Meter




Features:
  • Wavelength range: 0.19 -25µm
  • Damage threshold: 40KW/cm2
  • Power measurement range: 10mW-50W
  • Active Area diameter: 22mm
  • SMA905/FC fiber switch connector (Optional)
  • Support downlodad for Power Meter


Header Model TP100
Probe Model TS35 TS50
Power Range 10 mW - 35 W 10 mW - 50 W
Active Area Diameter 22 mm 22 mm
Continuous Measurement Time (<10 W) Unlimited Unlimited
Continuous Measurement Time
(10-50W)
≤5 min (10-35W) ≤5 min (10-50W)
Probe Coating Film Broadband coating
Probe Material Thermopile
Wavelength Range 0.19-25 μm
Max. Average Power Density 40 kW/cm2
Sensitivity 10 mW
Calibration Uncertainty (k=2) ±2%
Response Time (0-90%) <1 sec.
Linearity ±1%
Power Supply 18650 (2 batteries)
Overall Weight 1.926 kg
Cooling Method Air cooling
Computer Interface USB 1.1 and  USB 2.0
Instrument Power 100-240 VAC, 50/60 Hz, DC 12V-3.34A
Temperature (Operating) 5°C - 45°C (41°F - 113°F)
Temperature (Storage) -20°C - 70°C (-4°F - 158°F)
Warranty Period 1 year
Datasheet

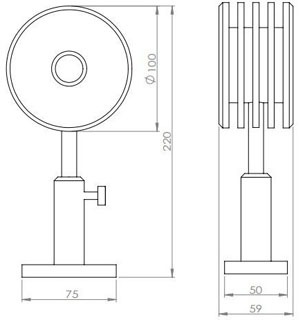

Header TP100 Probe TS35/ 50
