UV
(Ultraviolet)
Laser |
| |
|

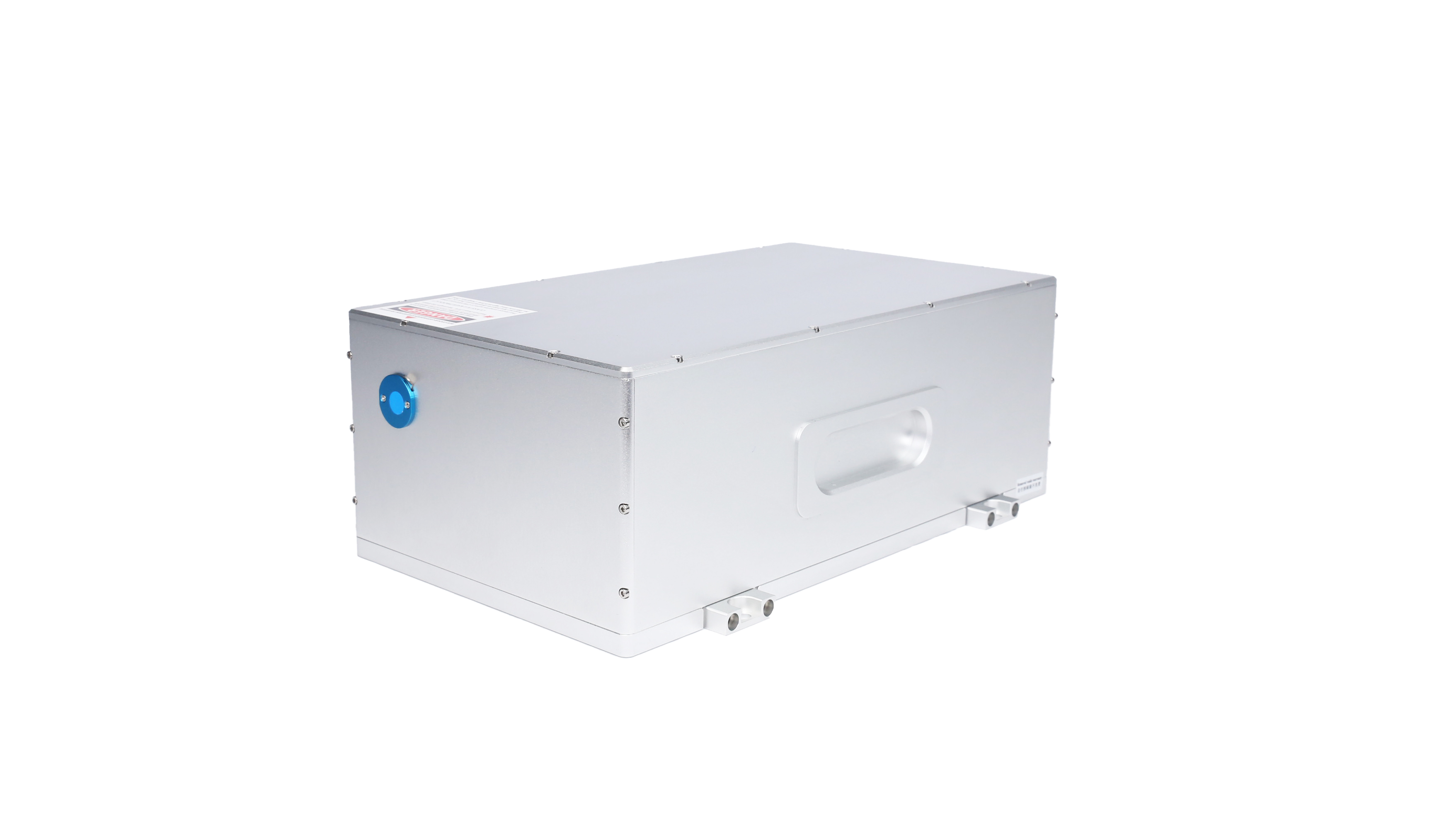

320 nm UV CW Solid State
Laser |
|
|
|
CNI’s self-developed 320 nm UV CW laser series
includes both continuous-wave and actively Q-switched pulsed models. Featuring
low noise, high stability, ultra-narrow linewidth and excellent beam quality,
these lasers deliver up to 4 W output power, with linewidth as low as <0.00001
nm and power stability <0.5%.
Supporting air or water cooling, they ensure stable
24/7 operation and are compatible with OEM integration as well as internal and
external triggering. These lasers are widely used in spectral analysis,
semiconductor inspection, biomedicine, advanced scientific research and
precision micromachining. |
|
|
|
Features
Linewidth
< 0.00001 nm
Noise of amplitude
<
0.5%
CW
Output
Power
>
4
W
Power
Stability < 0.5%
CW/ Pulsed
|
Applications
Raman Spectroscopy
Wafer / Chip Defect Inspection
Fluorescence Imaging
Semiconductor Material
Characterization
Atomic / Molecular Physics
Experiments
Optical Metrology |
 |
|
|
Specifications |
| |
|
320
nm Single Longitudinal Mode UV Laser |
|
Model |
Central Wavelengt(nm) |
Output
Power
(mW) |
Operating Mode |
Spectral Linewidth(nm) |
Power Stability
(rms, 4 Hours±3℃) |
Noise of amplitude |
|
MSL-FN-320 |
320±1 |
1~30mW |
CW |
<1MHz |
<1% |
<0.5% |
|
MSL-R-320 |
320±1 |
30~300mW |
CW |
<0.00001 |
<1% |
<0.5% |
|
| |
|
320
nm
Low Noise UV Laser |
|
Model |
Central Wavelengt(nm) |
Output
Power
(mW) |
Operating Mode |
Spectral Linewidth(nm) |
Power Stability
(rms, 4 Hours±3℃) |
Noise of amplitude |
|
UV-FN-320-LN |
320±1 |
1~30mW |
CW |
<0.003 |
<1% |
<1% |
|
UV-DP-320-LN |
320±1 |
30~1500mW |
CW |
<0.003 |
<0.5% |
<1% |
|
|
|
|
320 nm High Stability UV Laser |
|
Model |
Central Wavelengt(nm) |
Output
Power
(mW) |
Operating Mode |
Spectral Linewidth(nm) |
Power Stability
(rms, 4 Hours±3℃) |
Features
|
|
UV-FN-320-X |
320±1 |
1~30mW |
CW |
<0.2 |
<1% |
TEM00 |
|
UV-FN-320 |
320±1 |
1~100mW |
CW |
<0.2 |
<1% |
TEM00 |
|
UV-DP-320-A |
320±1 |
100~500mW |
CW |
<0.2 |
<1% |
|
|
UV-DP-320-B |
320±1 |
500~4000mW
|
CW |
<0.2 |
<0.5% |
Water cooled |
|
|
|
|
320
nm
Actively
Q-switched UV
Laser |
|
Model |
Central Wavelength(nm) |
Single Pulse Energy/
Average power (mW) |
Operating mode
(Q-switched) |
Repetition Rate |
Power
Stability
(rms, 4 Hours±3℃) |
Pulse
Width
(ns) |
|
AO-U-320-DP |
320±1 |
1~8uJ/ 1~40mW |
Actively |
1-30 kHz |
<3% |
~13 @5 kHz |
|
| |
|
|
Measurement
Data |
 |
 |
|
|
|
|
Central Wavelength: 319.805nm
@ UV-DP-320-B |
Output Power:
4.224W @ UV-DP-320-B |
|
Linewidth: 24.4 pm
@ UV-DP-320-B |
Power
Stability
<5%
@ UV-DP-320-B |
|
