532nm
laser>>DPS-532-A
|
|

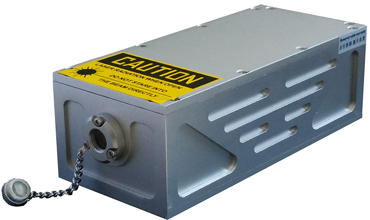

DPS-532-A/1~5mJ,
532 nm high single pulse energy all solid state
Q-switched
laser |
| |
 |
|
Specification |
|
Model |
DPS-532-A |
|
Wavelength (nm) |
532±1 |
|
Operating mode |
Q-switched: Electro-optic Modulation |
Q-switched: Passive Modulation |
|
Single pulse energy (mJ) |
5 |
|
Pulse duration (ns) |
<10 |
|
Rep. rate (Hz) |
1~10,EXT (adjustable) |
|
Energy stability（rms） |
<3% |
<5% |
|
Beam divergence, full angle (mrad) |
~3 |
|
Beam diameter (mm) |
<3 |
|
Warm-up time (minutes) |
<15 |
|
Beam height from base plate
(mm) |
34 |
|
Cooled method |
Conduction cooled |
|
Operating temperature(℃) |
15~30 |
|
Power supply (220/110VAC) |
PSU-DPS-A |
|
Expected lifetime (pluses) |
109 |
|
Warranty period |
1 year |
|
Available options |
Jitter(Sdev):~1ns (
Electro-optic modulation)； Battery power supply |
|
Datasheet |
 |
|
| |
|
Features |
Applications |
Drawings |
-
Single
pulse energy up to 5mJ
-
TEC cooling
system
-
Lightweight, compact design
-
High peak
power
-
Short pulse
duration
-
Best
reliability and lifetime
-
Q-switched(Electro-optic modulation or passive
modulation
|
-
Laser distance measuring
-
Scientific experiment
-
Optical instrument
-
Research
-
Industry
-
LIBS
-
PLIF, LIF
-
LCD repair
|
|
